Flutter Google Maps - Setup

First post in the series of Flutter and Google Maps. In this post, I will cover how to setup Google Maps and prepare your Flutter project to use gmaps.

Table of contents

Google Cloud Platform

Create a project

First, you need to create a project in Google Cloud Platform. Go to Google Cloud Platform and create a new project.

If you already have a project, you can use it, select it from dropdown in the top bar.

Enable Maps API

In the Navigation menu, go to Google Maps Platform.

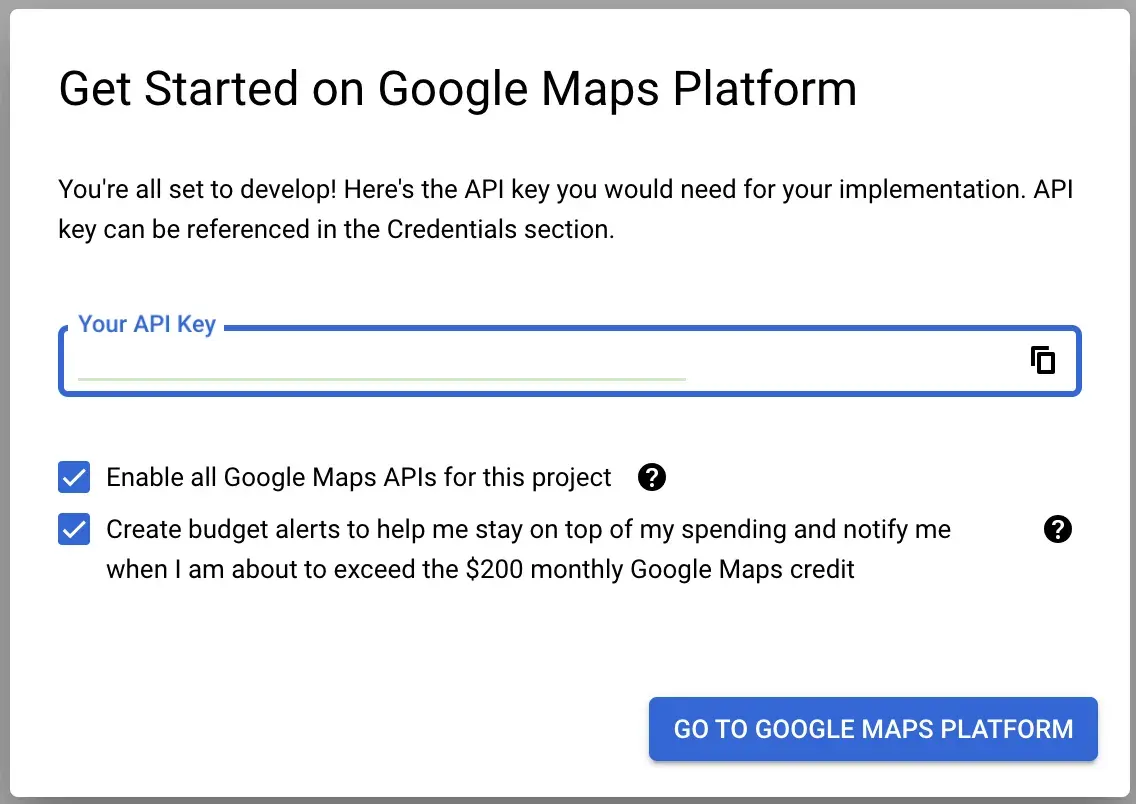

On the first open you will be proposed to setup Google Maps Platform.

Copy your API key, you will need it in the next step.

Keep both Enable all Google Maps APIs for this project and Create budget alerts... checked and click on GO TO GOOGLE MAPS PLATFORM button.

Once a Platform setup task is done, you will need to protect your key. For now you can use a simple IP Addresses restriction type with your public or local ip address. You can always change it later.

Now it’s time to enable maps API. Go to Google Maps Platform: APIs & Services and click on ENABLE button for next APIs:

• Maps SDK for Android - we will use it for Android app
• Maps SDK for iOS - this one will be used for iOS app
• Maps Static API - we will embed map static images in our app
• Geocoding API - this api will help us to convert address to coordinates and vice versa

Flutter project

Add dependencies for Flutter

Use flutter pub add command to add dependencies to your project.

• http - we will use it to send rest api requests for Geocoding API
• location - this package will help us to get user’s current location
• flutter_dotenv - we will use it to store our API key in a .env file
• google_maps_flutter - this package will help us to embed Google Maps in our app

Setup Secrets

The main goal is to avoid submitting an API key to the source control and keep it in a safe place.

It will also prepare your project for CI/CD flow, where you can use different keys for different environments.

Setup Secrets for a Flutter project

For Flutter project, we will use flutter_dotenv package to store our API key in a .env file.

• create two new files in the root folder of your project: .env and .env.example
• add .env file to the .gitignore file in the root folder
• add GOOGLE_MAPS_API_KEY= line to .env.example file. It will help to remember the key name
• add GOOGLE_MAPS_API_KEY=YOUR_API_KEY_VALUE line to .env file. Replace YOUR_API_KEY_VALUE with your real API key
• open main.dart file and import flutter_dotenv package: import 'package:flutter_dotenv/flutter_dotenv.dart';
• add a new line at the beginning of the main() method

1
  await dotenv.load(fileName: ".env");

• later in the code, you can access your API key with:

1
  final String _apiKey = dotenv.get('GOOGLE_MAPS_API_KEY');

Pretty simple setup for a Flutter project, compared to Native code.

Setup Secrets for Android and iOS

To correctly handle an API key in the Native code, we will need to make a couple of adjustments.

Android

Open article Secrets Gradle plugin.

Follow this article to install and setup com.google.android.libraries.mapsplatform.secrets-gradle-plugin:secrets-gradle-plugin in your Android project.

Note: Skip watching the video in this article, it’s not updated and you will need to redo the setup as in the article.

I won’t describe all the parts of the setup, but I will highlight the main steps:

• add a new dependency com.google.android.libraries.mapsplatform.secrets-gradle-plugin:secrets-gradle-plugin:2.0.1 (check a current version) to your build.gradle file in the root folder (right under android)
• add a plugin com.google.android.libraries.mapsplatform.secrets-gradle-plugin in android/app/build.gradle file
• also in the same file, make sure targetSdk and compileSdk are set to 34 or the one that is recommended at the time you are reading this post.
• create a new file android/secrets.properties and add your API key there as a key=value pair
  • you can follow example in the article and name key as MAPS_API_KEY or use any other name, i.e. GOOGLE_MAPS_API_KEY
  • as a value you should use your API key, the one you copied from Google Maps Platform setup step
• add a new line secrets.properties to .gitignore file in the root android folder
• update local.defaults.properties file in the same folder to include MAPS_API_KEY=DEFAULT_API_KEY or GOOGLE_MAPS_API_KEY=DEFAULT_API key-value pair
  • Note: value DEFAULT_API_KEY is intentional, don’t replace it with your real API key, this step helps to prevent build failure if secrets.properties file is missing
• now navigate to android/app/src/main/AndroidManifest.xml and add there a new meta-data tag (for correct values check article)
• finally, navigate to android/app/build.gradle and find secrets block
  • if this section is missing - add it
  • under secrets add two new lines:

1
    propertiesFileName = "secrets.properties"
2
    defaultPropertiesFileName = "local.defaults.properties"

Okay, that was a long list of actions, but check the article, it’s very well written, and you should be able to follow it without any issues.

iOS

iOS is a bit different from Android, but it’s still easy to setup.

My steps to setup iOS secrets are:

• create two files Debug.xcconfig and Release.xcconfig in the ios/Flutter folder
• add Debug.xcconfig to .gitignore file in the root ios folder
• open Release.xcconfig and add a new line GOOGLE_MAPS_API_KEY=$(GOOGLE_MAPS_API_KEY). Note: $(GOOGLE_MAPS_API_KEY) is evaluated value from environment variables of your or CI/CD runner system
• open Debug.xcconfig and add a new line GOOGLE_MAPS_API_KEY=YOUR_API_KEY_VALUE. Note: YOUR_API_KEY_VALUE is your real API key, do not wrap it in quotes or use any other symbols.
• open Info.plist file in the ios/Runner folder and add a new key-value pair under dict tag (for convenience you can add it right above </dict> tag)

1
  <key>googleMapsApiKey</key> # this value is important, we will access it in the code later
2
  <string>$(GOOGLE_MAPS_API_KEY)</string>

• since we are in the Info.plist file, you can also add a new key-value pair for NSLocationWhenInUseUsageDescription to ask user for permission to use location services

1
  <key>NSLocationWhenInUseUsageDescription</key>
2
  <string>Your current location.</string>

• finally, open AppDelegate.swift file in the ios/Runner folder and add a new line in the application method as a first line

1
GMSServices.provideAPIKey(Bundle.main.object(forInfoDictionaryKey:"googleMapsApiKey") as? String ?? "");

And we are done setting up iOS secrets.

Conclusion

In this post, we have created a new project in Google Cloud Platform, enabled Maps API and setup protected handling of our API key both in the Flutter and Native code.

This setup will help you to avoid publishing your API key to the source control and prepare your project for CI/CD flow.
